Core Drill CDR Series

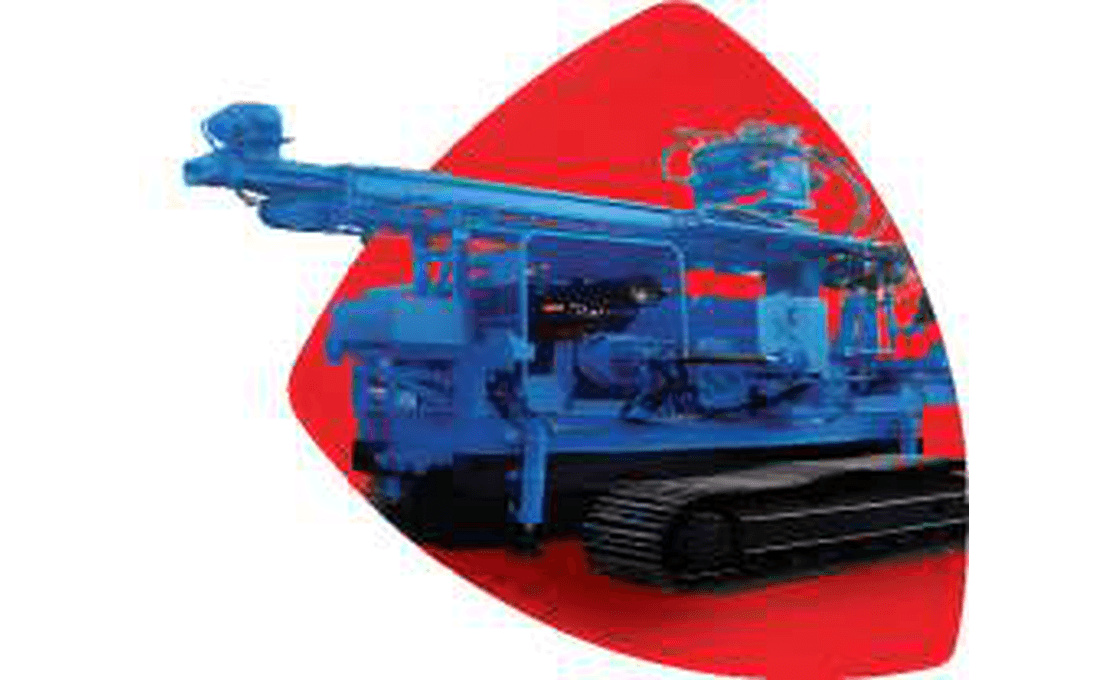

CDR-2000
Hole Diameter
3″ (76 mm)
Depth
6,561 ft
Core Drill CDR Series
Diamond coring rig in the CDR range, rated to 6,561 ft with NQ/HQ wireline capability.
Product Specifications
Why KLR Universal
- 40+ years of expertise
- Industry leader
- Trusted in 60 countries
- Excellent after-sales support
| Parameter | Value |
|---|---|
| Hole diameter | 3″ (76 mm) |
| Main winch | Single line capacity: 33,069 lbs (15,000 kgs) / drum speed: 131 ft/min (40 m/min) / cable size: 1″ (25 mm) |
| Wire line winch | Line pull: 4,409 lbf (2,000 kg) / line speed: 394 fpm (120 m/min) |
| Rotary head torque / speed | 0–1200 rpm / 295–9,835 lbf (40–1350 kg·m) |
| Mast max pull up / pull down force | 52,910 lbs (24,000 kgs) / 25,353 lbs (11,500 kgs) |
| Capacity NQ / HQ | 6,561 ft (2000 m) / 3,937 ft (1200 m) |
| Prime mover | 320 HP |
| Depth | 6,561 ft (2000 m) |
| Core diameter | 1.87″ (48 mm) |
