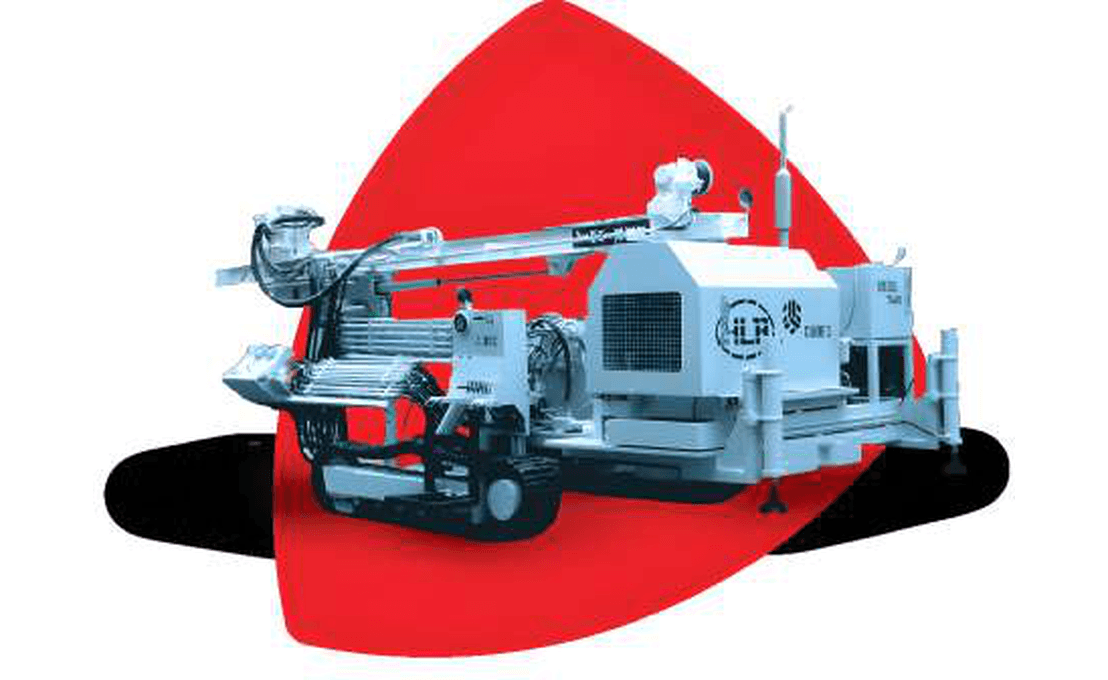

Surface Blast Hole
ITD 46
Hole Diameter
4.5″–12″
Depth
98 ft
Surface Blast Hole
A larger-diameter step up from the ITD 10, built for surface blast hole drilling up to 12″ diameter on a diesel-engine crawler carrier.
Product Specifications
Why KLR Universal
- 40+ years of expertise
- Industry leader
- Trusted in 60 countries
- Excellent after-sales support
| Parameter | Value |
|---|---|
| Hole diameter | 4.5″ (114.3), 6.5″ (165.1 mm), 9″ (228.6 mm), 10″ (254 mm), 12″ (304.8 mm) |
| Depth | 98.4 ft (30 m) |
| Rotary head torque / speed | 0 to 100 rpm / 280 kg·m |
| Mast max pull up / pull down force | 11,905 lbs (5,400 kgs) / 5,512 lbs (2,500 kgs) |
| Air compressor | 450 cfm – 150 psi (12.7 m³/min – 10.34 bar) or 600 cfm – 250 psi (17 m³/min – 17.24 bar), 1200 cfm – 320 psi (34 m³/min – 22.06 bar) |
| Prime mover | Diesel engine |
