DTHR Series

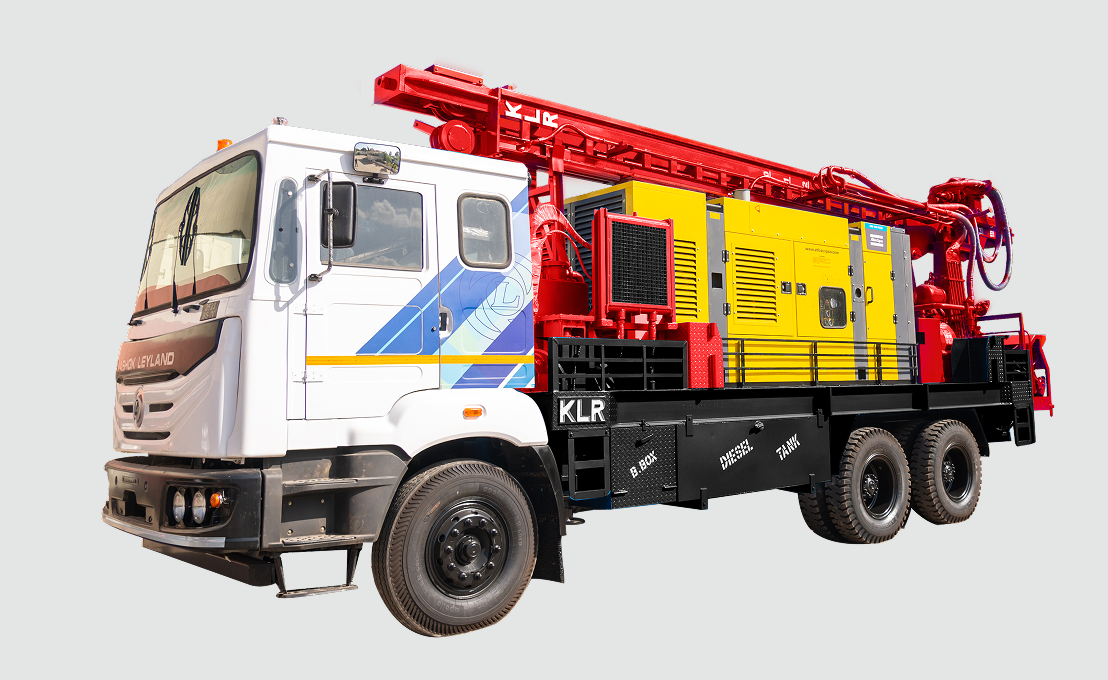

DTHR-300
Drill Diameter
4.5″ to 17½″
Depth
200–400 m
Water Well DTHR Series
Hydraulic-powered and built for air, foam, mud, rotary and DTH drilling, the DTHR Series adapts to any terrain with ease
Product Specifications
Why KLR Universal
- 40+ years of expertise
- Industry leader
- Trusted in 60 countries
- Excellent after-sales support
| Parameter | Value |
|---|---|
| Hole diameter | DTH (continuous): 4.5″–6.5″DTH (overburden): 9″, 10″Rotary (continuous): 8″–12¼″Rotary (overburden): 12¼″ & 17½″ |
| Rated drilling depth | 300–350 metres (depth depends on formation, compressor and drill string; model range: 200–400 m) |
| Carrier Truck | –Standard: (6×4) Ashok Leyland truck / as per customer requestStandard mounting: Single-truck mounting (compressor + rig)Optional: Double-truck mounting with separate compressor carrier |
| Prime Mover | Truck engine |
| Formation | Soft/hard/unconsolidated/alluvial |
| Mast | Max pull-up force (std): 11,200 kgMax pull-down force (std): 5,500Pull-up speed: 45 m/minRod handling: 6 m rodsOptional pull-up force: 17,000 kg |
| Rotatory Head | Max speed: 0–120 rpmMax torque: 550 kg·m |
| Rod Changer | Standard: Manually operated single rod changerOptional: Automatic rod changer (two-truck version) |
| Air compressor (compatible options) | Atlas Copco / ELGI / as per requestCapacity: 750–1250 cfm @ 250–350 psi (typical pairing: 1100 cfm @ 300 psi) |
| Mud Pump | Make: G&PCapacity: 6″ × 6″ |
