Name: CDR-50
Brand: KLR Universal

Question 1

What are the key specifications of the CDR-50?

Accepted Answer

Hole Diameter: 3″ (76 mm); Depth: 164 ft. Full specifications are listed in the table below.

Question 2

What category of drilling rig is the CDR-50?

Accepted Answer

The CDR-50 is part of KLR Universal's Exploration Drill Rigs range.

Question 3

Can the CDR-50 be customized for specific project requirements?

Accepted Answer

Yes. KLR Universal builds custom drilling equipment to meet application-specific requirements -- contact our team to discuss configuration for your project.

Question 4

Does KLR Universal provide after-sales support for the CDR-50?

Accepted Answer

Yes. KLR Universal backs every rig with dedicated after-sales support, drawing on 40+ years of manufacturing experience and a presence in 60+ countries.

Parameter	Value
Hole diameter	3″ (76 mm)
Main winch	Single line capacity: 6,614 lbf (3,000 kg) / drum speed: 148 fpm (45 m/min) / cable size: 0.55″ (14 mm)
Wire line winch	Line pull: 2,205 lbf (1,000 kg) / line speed: 328 fpm (100 m/min)
Rotary head torque / speed	1000 rpm / 77–309 lbf (30–140 kg·m)
Mast max pull up / pull down force	11,904 lbs (5,400 kgs) / 5,291 lbs (2,400 kgs)
Capacity NQ / HQ	164 ft (50 m)
Prime mover	76 HP
Depth	164 ft (50 m)
Core diameter	1.87″ (48 mm)

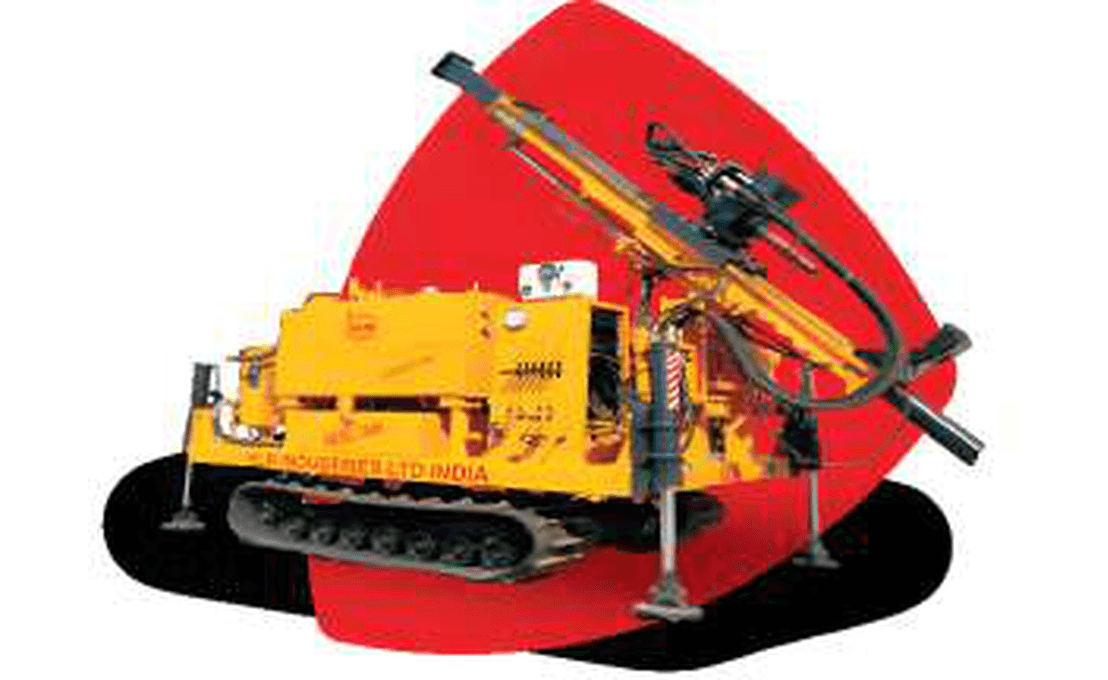

CDR-50

Diamond coring rig in the CDR range, rated to 164 ft with NQ/HQ wireline capability.
