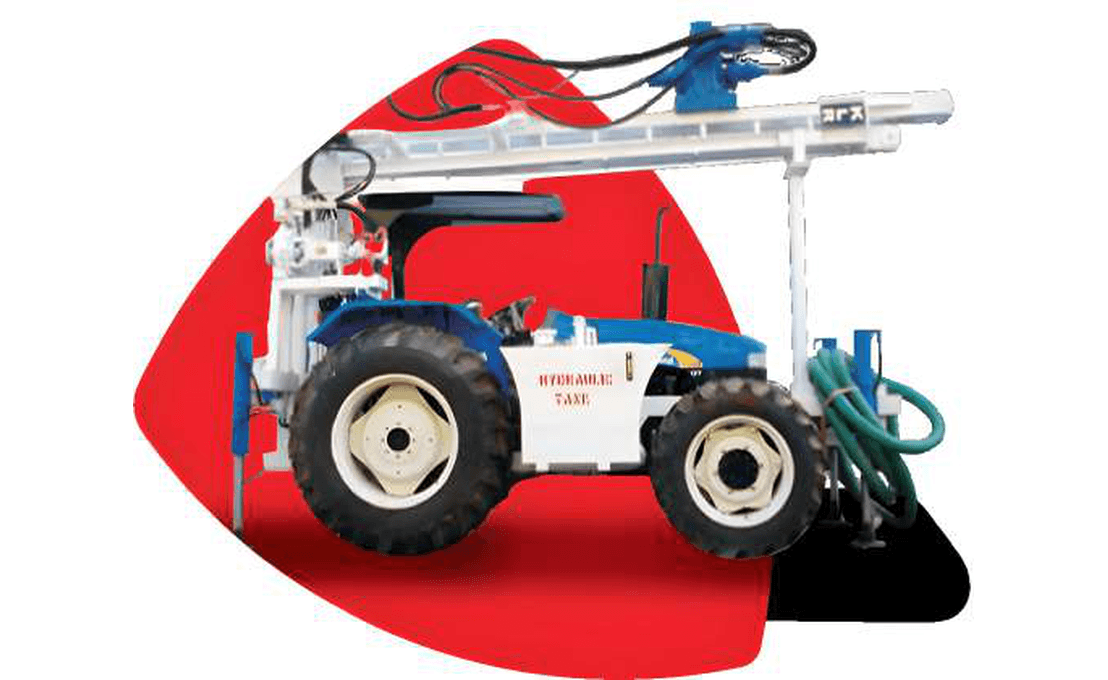

Tractor Mounted Core Rig
TC 40
Core Diameter
NQ
Depth
492 ft
Tractor Mounted Core Rig
A tractor-mounted coring rig for shallow, mobile exploration work -- the same compact carrier as the TBW-40 water well rig, built instead for NQ core sampling.
Product Specifications
Why KLR Universal
- 40+ years of expertise
- Industry leader
- Trusted in 60 countries
- Excellent after-sales support
| Parameter | Value |
|---|---|
| Hole diameter | 4.5″ to 6.5″ (114 mm to 165 mm) |
| Depth | 492 ft (150 m) |
| Core diameter (NQ) | 492.13 ft (150 m) |
| Rotary head torque / speed | 0 to 700 rpm / 40 to 120 kg·m |
| Mast max pull up / pull down force | 9,920 lbs (4,500 kgs) / 5,291 lbs (2,400 kgs) |
| Air compressor | 600 cfm – 200 psi (17 m³/min – 13.79 bar) / as per customer request |
| Tractor | New Holland / Form tractor (as per customer request) |
| Prime mover | Tractor engine |
