DTHR Series

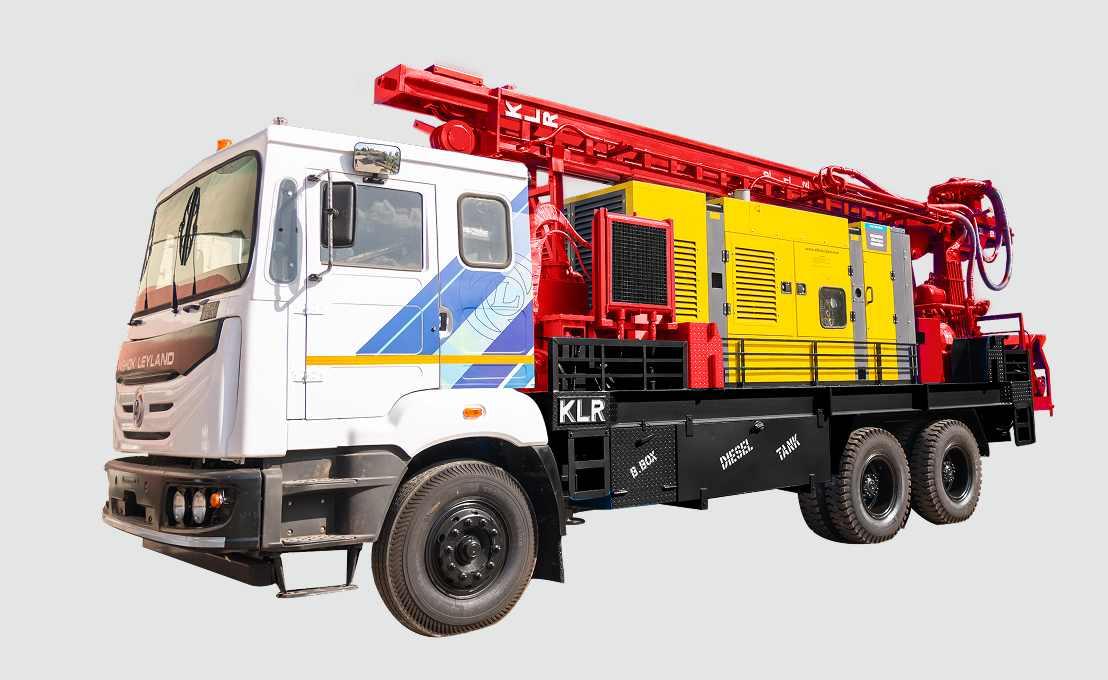

DTHR-150
Drill Diameter
4.5″ to 10″
Depth
100–200 m
Water Well DTHR Series
Hydraulic-powered and built for air, foam, mud rotary and DTH drilling, the DTHR Series adapts to any terrain with ease.
Product Specifications
Why KLR Universal
- 40+ years of expertise
- Industry leader
- Trusted in 60 countries
- Excellent after-sales support
| Parameter | Value |
|---|---|
| Hole diameter | DTH (continuous): 4.5″–6.5″ DTH (overburden): 7″ Rotary (continuous): 6″–8″ Rotary (overburden): 10″ |
| Rated drilling depth | 100–150 m (depth depends on formation, compressor and drill string; model range: 100–200 m) |
| Carrier truck | Standard: 4×2 / 4×4 Standard mounting: Single-truck mounting (compressor + rig) |
| Prime mover | Truck engine |
| Formations | Soft,hard,unconsolidated,alluvial |
| Mast | Max pull-up force: 5,200 kg Max pull-down force: 2,700 kg Pull-up speed: 45 m/min Rod handling: 3 m rods |
| Rotary head | Max speed: 0–120 rpm Max torque: 360 kg·m |
| Rod changer | Standard: Manually operated single rod changer Optional: Automatic rod changer (for 2-truck version) |
| Air compressor (compatible options) | Atlas Copco / ELGI / as per request Capacity: 750–1250 cfm @ 250–350 psi (other options such as 550 cfm @ 200 psi available on request) |
| Mud pump | Make: G&P Capacity: 5″ × 4″ |
| Optional package | Optional package Only Down-the-Hole drill package |
