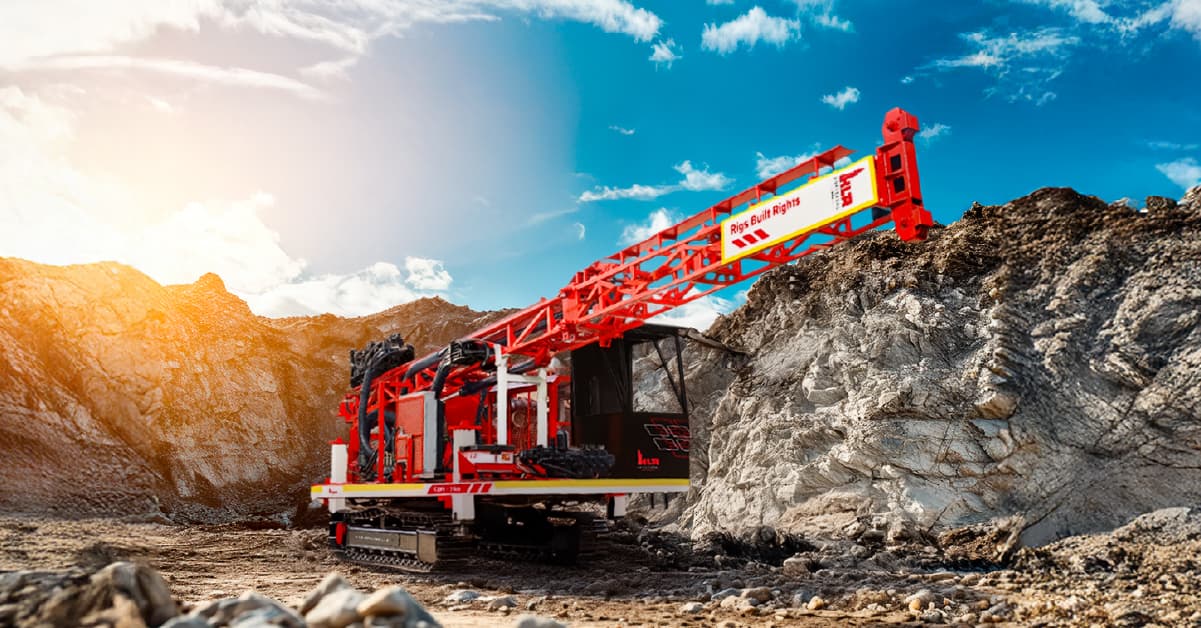

How Depth and Soil Type Impact Your Drilling Rig Selection

Introduction

Drilling rig choice comes down to two site factors above all else: how deep the borehole needs to go, and what type of soil or rock the rig will be cutting through. Getting either wrong leads to early wear, project delays, and added cost. KLR Universal has built drilling rigs to match these ground realities for over 40 years.

Why Depth Matters When Selecting a Drilling Rig?

The deeper the target, the greater the stress on mast, rotary head and drill string. It's not just a matter of reaching the target depth — it's doing so efficiently and safely.

Shallow drilling (<100 m):

Ideal for groundwater pumping, agricultural irrigation, or rural water supply. Such schemes call for light, transportable, and instantly deployable water well rigs. KLR’s small water well rigs are engineered for such low-depth, high-performance uses.

Medium-depth drilling (100–500 m):

Plentiful in infrastructure or energy-oriented ventures. Tractor-mounted rigs like KLR’s TC-40 serve the purpose perfectly—balancing mobility with increased depth.

Deep drilling (>500 m):

Think about geothermal or mineral exploration. You need heavy-duty rigs with high torque, better pulling power, and hydraulic support systems. This range of depth drilling equipment must be rugged, stable, and well-engineered.

KLR Advantage:

Our drilling units are depth-classified and pressure-enabled. From skid mount configurations in confined spaces to self-propelled models for rapid movement, our range meets every depth specification with precision.

Soil Type: The Secret Significant Change

Soil is never consistent. You may start in soft silt and hit granite in two metres. That is why combining soil type with the proper drilling rig and accessories is not a choice.

Soft Soils (Clay, Loam, Silt)

• Problem: Equipment becomes stuck or slips because of low friction.
• Remedy: Low-speed, high-torque rigs with auger compatibility.
• KLR Fit: Our friction-welded drill rods and cluster hammers provide more grip and prevent sinking when jamming.

Hard Rock (Basalt, Granite)

• Problem: Excessive impact and wear.

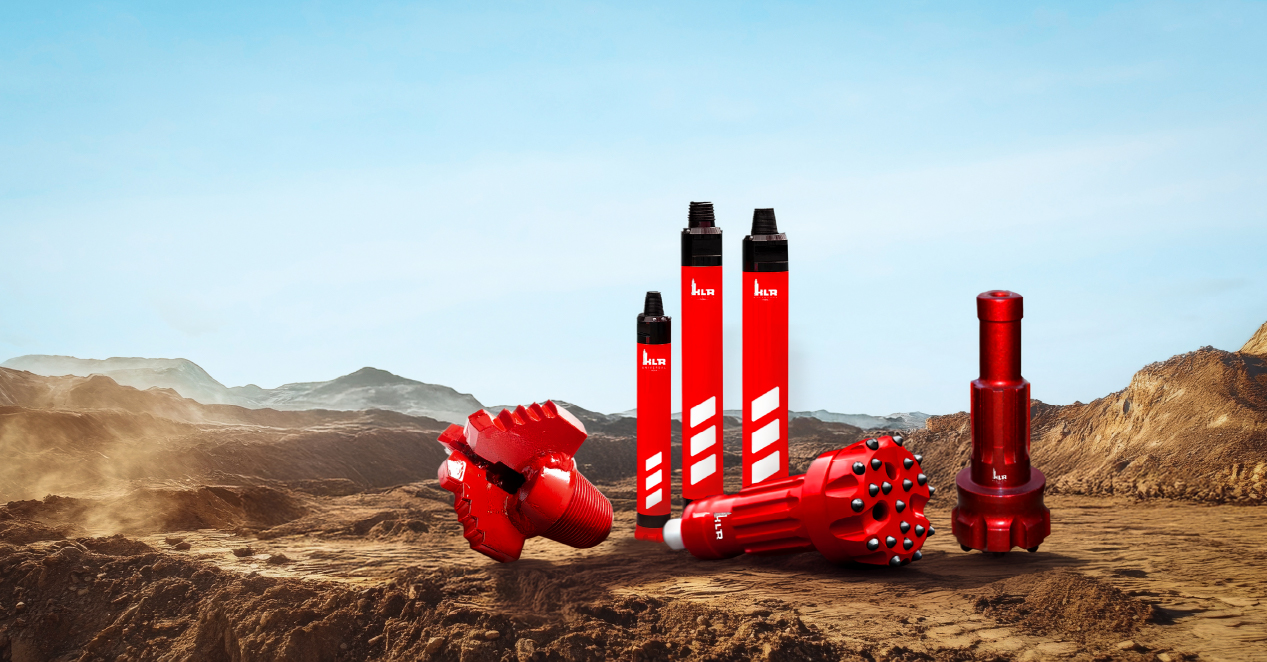

• Solution: DTH hammers in hard rock with support from reinforced rock roller bits.
• KLR Fit: Our DTH series is designed to last, built with induction-hardened components to withstand the most severe environments.

Mixed or Gravel Soils

• Problem: Abrasion, moving loads, uneven resistance.
• Solution: Versatile rigs with modular designs and flexible accessories.
• KLR Fit: Adjustable torque settings, button bits, and our customised drill rigs allow for smooth transfer across variable ground.

From sticky clay to abrasive quartzite, KLR drilling rigs are built with reliability and toughness in mind. We supply 60+ countries with normal soil volatility.

Finding the Right Rig for the Right Site

Here’s a simple 3-step model for choosing your rig intelligently:

Estimate the Depth:

Is it shallow bore or deep drilling? Choose rig size, torque, and mobility suitably.

Conduct the Soil Test:

A geotechnical survey reveals composition—this will decide your bit and hammer choice.

Choose Rig Features:

Hydraulic lift? Self-powered movement? Compact base? Choose terrain, access, and operation convenience.

And if your project is unique, don’t worry:

KLR excels at customising rigs, whether it’s modifying drill rod lengths or designing hydraulic systems for ground-specific resistance.

Other Key Things to Think About

Drilling isn’t only what goes underground—it’s also what goes around:

Accessibility of Site:

Remote locations might require tractor-mounted rigs or skid-mounted equipment.

Sensitivity to Timeline:

Time delays are costly. Quick deployment rigs with simple assembly become imperative.

Budget Constraints:

Custom doesn’t have to mean costly. KLR optimises your rig for ROI, not just upfront cost..

And don’t forget:

even the best rig fails without support. That’s why KLR’s 24/7 dealer and service network ensures you’re never left stranded on-site.

Conclusion:

The secret to success in every drilling venture begins with one philosophy: match your rig to the ground it drills. Equipped with the proper equipment and advice, you can drill under control and confidence.

With 40 years of innovation, a presence in over 60 countries, and a reputation for precision-engineered, ISO-certified rigs, KLR Universal is more than a supplier—we’re your drilling partner.

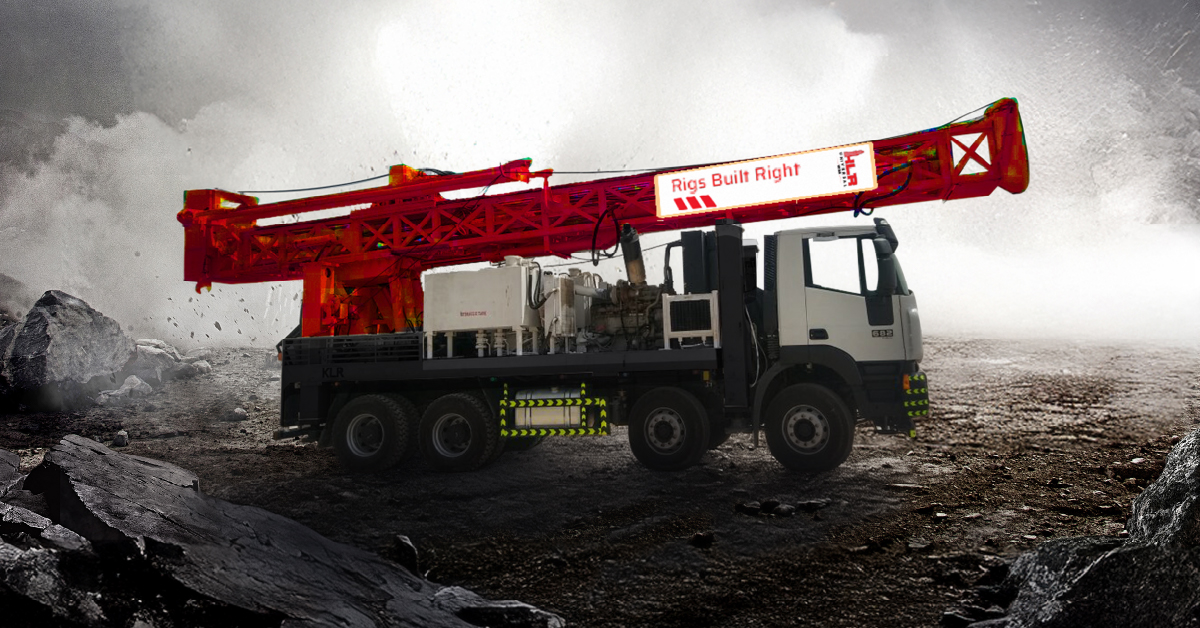

Related Links: Role of Drilling Tools in Mining & Construction
