Mining

ITD 10 — Down-the-Hole Drill

Drill Diameter4.5” to 6.5”

DepthUp to 30 m

Compressor450–600 cfm @ 250–350 psi

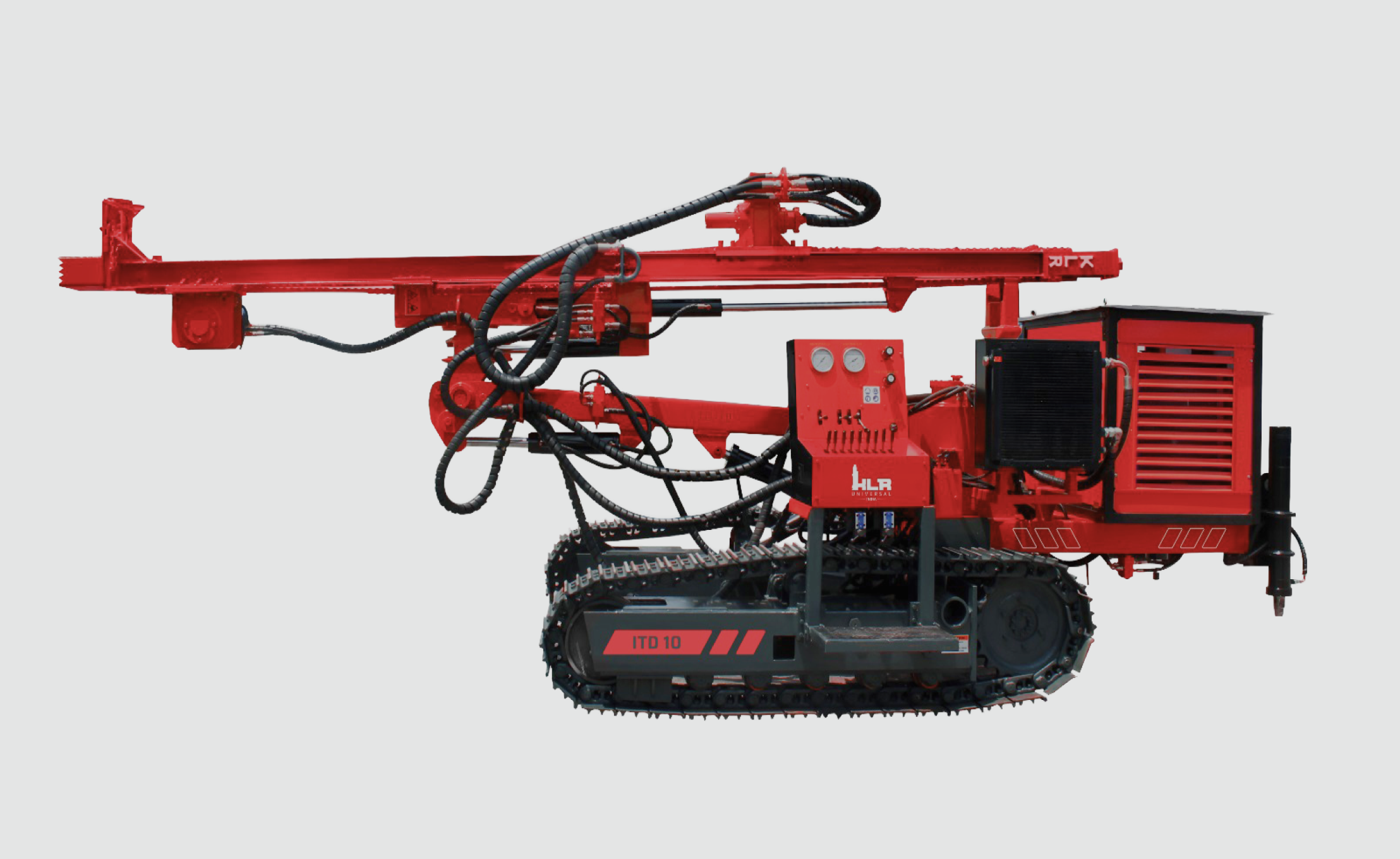

ITD 10 — Down-the-Hole Drill

Compact DTH drilling for shallow boreholes

ITD 10 is a nimble, easy-to-deploy DTH rig designed for short-depth jobs—tube wells, site investigations, and utilities—delivering clean, fast penetration with a small footprint and simple operation.

Product Specifications

Download ITD 10 specification sheet (PDF)

Why KLR universal

32 years of expertise
Industry leader
Trusted in 60 countries
Excellent after-sales support

Contact & Support

Parameter	Value
Compressor capacity	4.5″ (114 mm) to 6.5″ (165mm)
Single pass (Standard)	3 m
Multi pass capacity	30m
Rotation Torque	1471 Nm
Rotation Speed	100 RPM
Pull down Mechanism	Cylinder with Chain
Feed force	4850 lbs
Hoist force	4850 lbs
Compressor capacity	450 cfm@150psi 600cfm@250 psi
