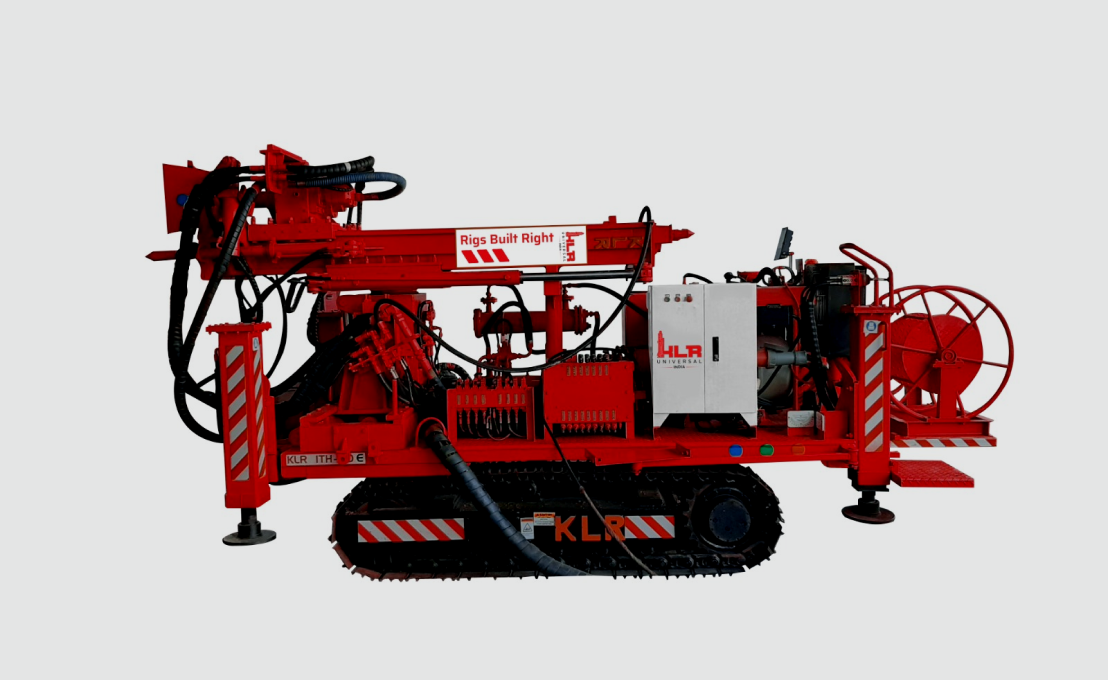

ITH 60 — In-the-hole drill
Drill Diameter
6.5” to 12″
Depth
Up to 50 m
Compact electric ITH for precise hard-rock holes
Purpose-built for vertical and angled holes in competent rock, ITH 60 pairs an electric prime mover with a high-torque rotary head for smooth, controlled penetration and efficient air flushing—ideal for mining, tunneling, and civil works.
Product Specifications
Why KLR Universal
- 40+ years of expertise
- Industry leader
- Trusted in 60 countries
- Excellent after-sales support
| Parameter | Value |
|---|---|
| Hole diameter | 6.5″–12″ (vertical downward and up to ~85° left/right in hard-rock formations) |
| Rated drilling depth | Up to 50 m |
| Prime mover | Electric engine |
| Mast | Max pull-up force: 8,500 kgf Max pull-down force: 4,900 kgf |
| Rotary head | Max speed: 0–100 rpm Max torque: 360 kg·m |
| Rod Changer | Standard: Manually operated single rod changer Optional: Automatic rod changer |
| Air compressor (compatible options) | Atlas Copco / ELGI / as per request — Capacity: 600–1200 cfm @ 200–350 psi |
