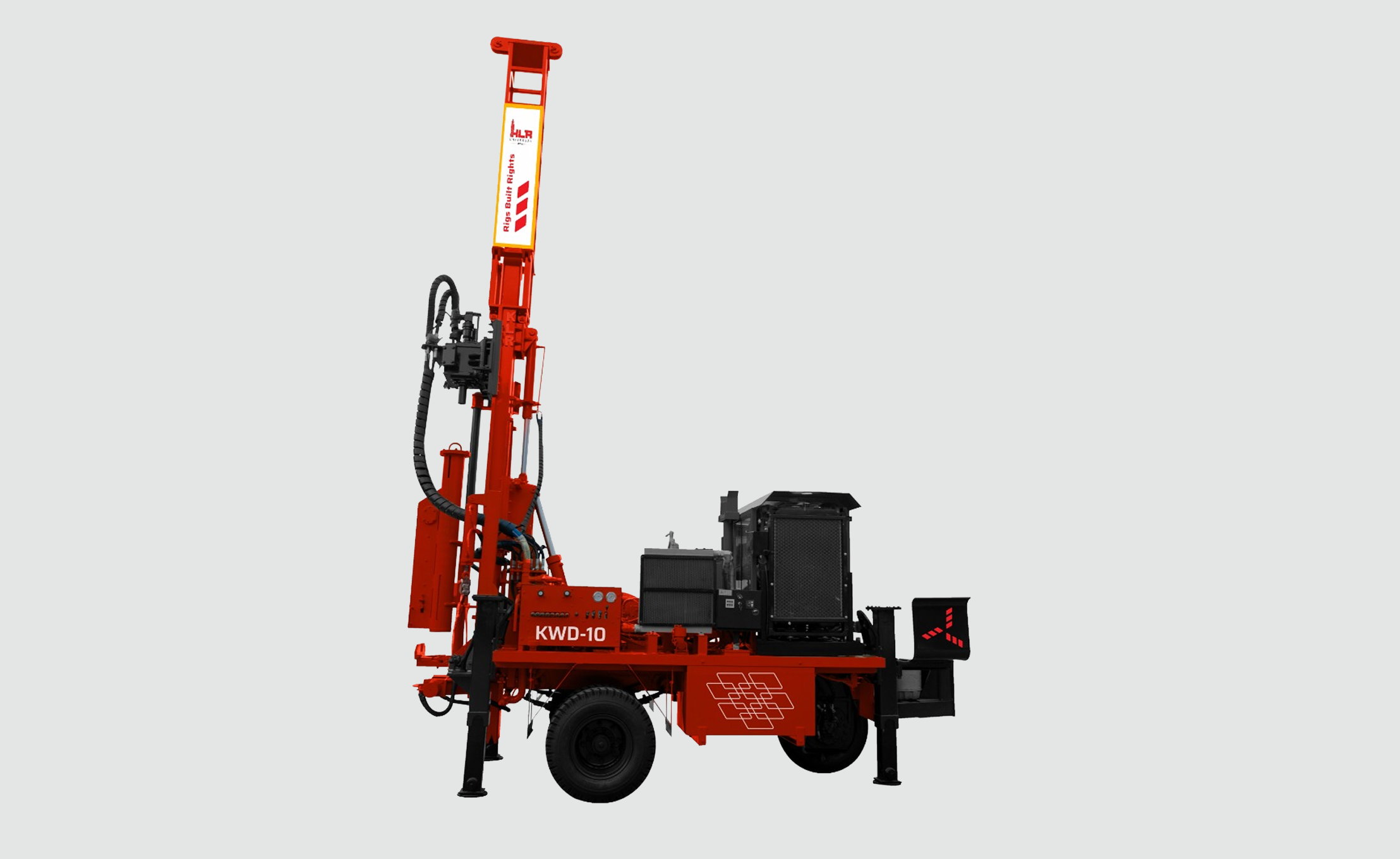

KWD 10 — Down-the-Hole Drill

Drill Diameter4.5” to 6”

DepthUp to 30 m

Compressor450–600 cfm @ 150–250 psi

Compact DTH rig for shallow wells up to 30 m

Built for quick deployments and dependable penetration in soft to hard rock, the KWD 10 pairs a diesel powerpack with a high-torque head—ideal for tube wells, site utilities, and short-depth jobs.

Parameter	Value
Hole diameter	4.5″–6″
Rated drilling depth	30 m
Prime mover	Diesel engine
Formations	Soft / hard rock
Mast	Max pull-up force: 2,200 kgf Max pull-down force: 2,200 kgf Pull-up speed: 25 m/min
Rotary head	Max speed: 0–100 rpm Max torque: 150 kg·m
Air compressor (compatible options)	Atlas Copco / ELGI / as per request — Capacity: 450–600 cfm @ 150–250 psi
