Water Well DTH Series

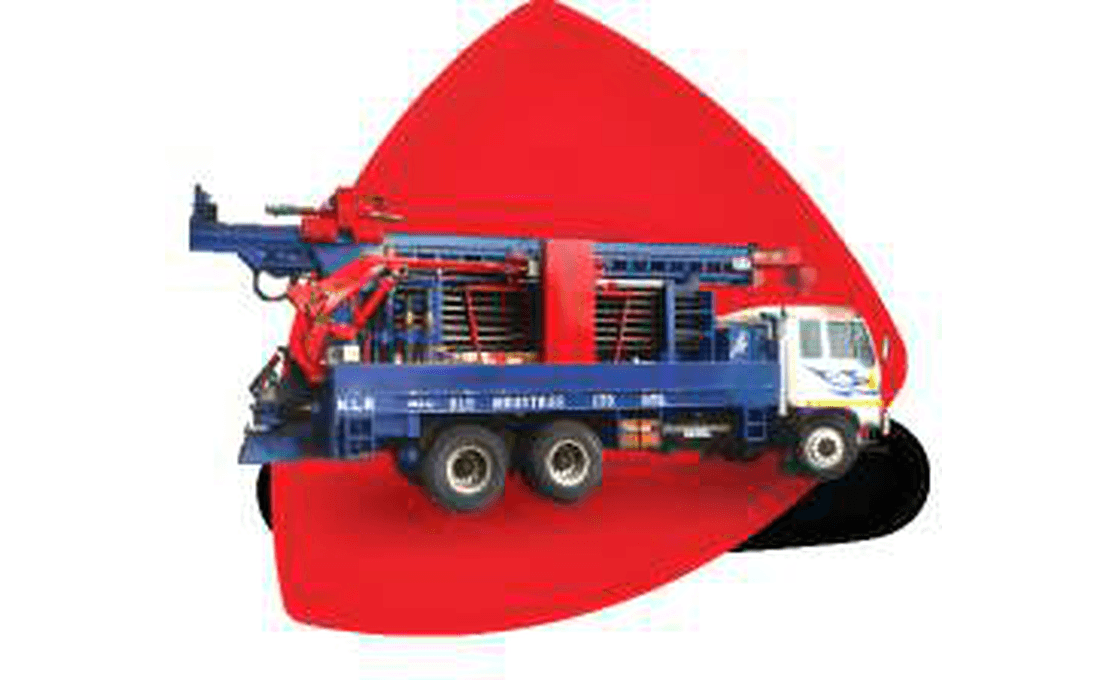

DTH-1500 Double Truck
Hole Diameter
6.5″–12″
Depth
1500 ft
Water Well DTH Series
The DTH-1500 drilling package split across two carrier trucks -- rig and compressor on separate chassis -- for operators who need the same depth capacity with a lighter per-axle load.
Product Specifications
Why KLR Universal
- 40+ years of expertise
- Industry leader
- Trusted in 60 countries
- Excellent after-sales support
| Parameter | Value |
|---|---|
| Hole diameter | 6.5″, 9″, 10″, 12″ (165.1, 229, 254, 305 mm) |
| Depth | 1500 feet |
| Rotary head speed | 0–170 rpm |
| Rotary head torque | 280 kg·m |
| Air compressor capacity | 1200 cfm @ 320 psi / 1100 cfm @ 300 psi (34 m³/min @ 22.1 bar / 31.1 m³/min @ 20.7 bar) |
| Mast max pull up / pull down force | 34,171 lbs (15,500 kgs) / 16,534 lbs (7,500 kgs) |
| Prime mover | Truck engine |
| Mounting | Double-truck: rig and compressor on separate carrier trucks |
