Name: DTHR-100
Brand: KLR Universal

Question 1

What are the key specifications of the DTHR-100?

Accepted Answer

Hole Diameter: 6.5″–12″; Depth: 100 ft. Full specifications are listed in the table below.

Question 2

What category of drilling rig is the DTHR-100?

Accepted Answer

The DTHR-100 is part of KLR Universal's Water Well Drill Rigs range.

Question 3

Can the DTHR-100 be customized for specific project requirements?

Accepted Answer

Yes. KLR Universal builds custom drilling equipment to meet application-specific requirements -- contact our team to discuss configuration for your project.

Question 4

Does KLR Universal provide after-sales support for the DTHR-100?

Accepted Answer

Yes. KLR Universal backs every rig with dedicated after-sales support, drawing on 40+ years of manufacturing experience and a presence in 60+ countries.

Parameter	Value
Hole diameter	6.5″, 9″, 10″, 12″ (165, 229, 254, 305 mm)
Depth	100 ft (30 m)
Rotary head speed	0–170 rpm
Rotary head torque	300 kg·m / 600 kg·m
Air compressor capacity	1000 cfm @ 275 psi (28 m³/min @ 19 bar)
Mast max pull up / pull down force	18,739 lbs (8,500 kgs) / 9,920 lbs (4,500 kgs)
Prime mover	Truck engine

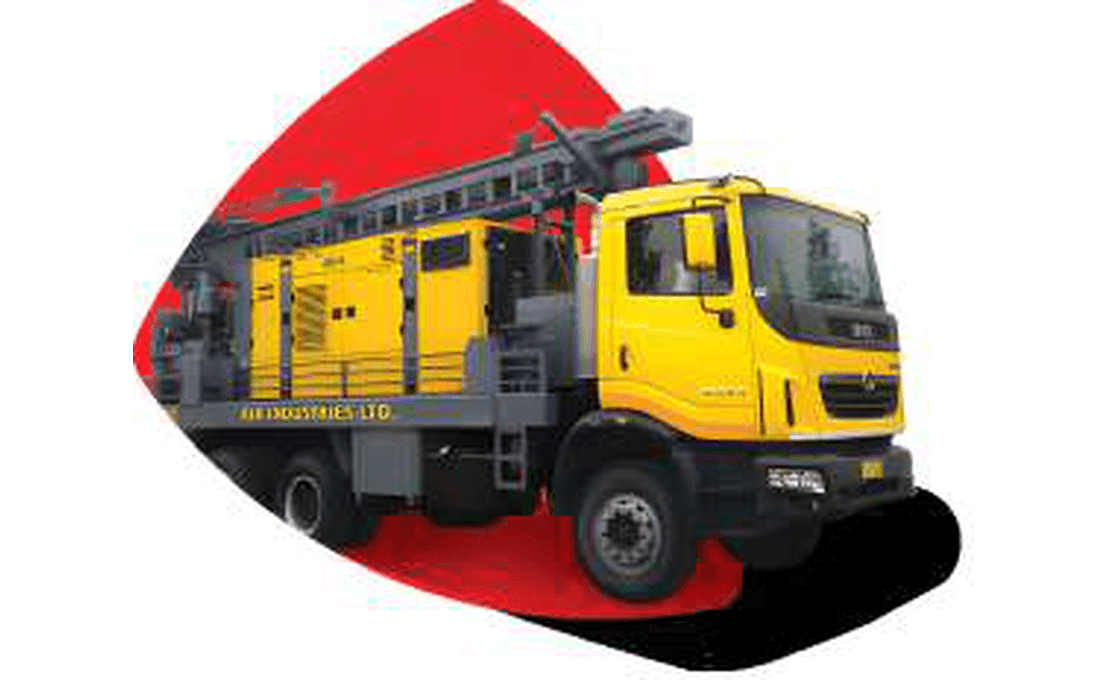

DTHR-100

The entry point of the export DTHR line, sized for shallower domestic and agricultural bores while keeping the same truck-mounted DTH architecture as the rest of the series.
