Name: DTH-2500
Brand: KLR Universal

Question 1

What are the key specifications of the DTH-2500?

Accepted Answer

Hole Diameter: 6.5″–12″; Depth: 2500 ft. Full specifications are listed in the table below.

Question 2

What category of drilling rig is the DTH-2500?

Accepted Answer

The DTH-2500 is part of KLR Universal's Water Well Drill Rigs range.

Question 3

Can the DTH-2500 be customized for specific project requirements?

Accepted Answer

Yes. KLR Universal builds custom drilling equipment to meet application-specific requirements -- contact our team to discuss configuration for your project.

Question 4

Does KLR Universal provide after-sales support for the DTH-2500?

Accepted Answer

Yes. KLR Universal backs every rig with dedicated after-sales support, drawing on 40+ years of manufacturing experience and a presence in 60+ countries.

Parameter	Value
Hole diameter	6.5″, 9″, 10″, 12″ (165.1, 229, 254, 305 mm)
Depth	2500 feet
Rotary head speed	0–170 rpm
Rotary head torque	500 kg·m
Air compressor capacity	1200 cfm @ 320 psi / 1500 cfm @ 400 psi (34 m³/min @ 22.7 bar / 42.5 m³/min @ 27.6 bar)
Mast max pull up / pull down force	48,410 lbs (22,000 kgs) / 28,660 lbs (13,000 kgs)
Prime mover	Truck engine

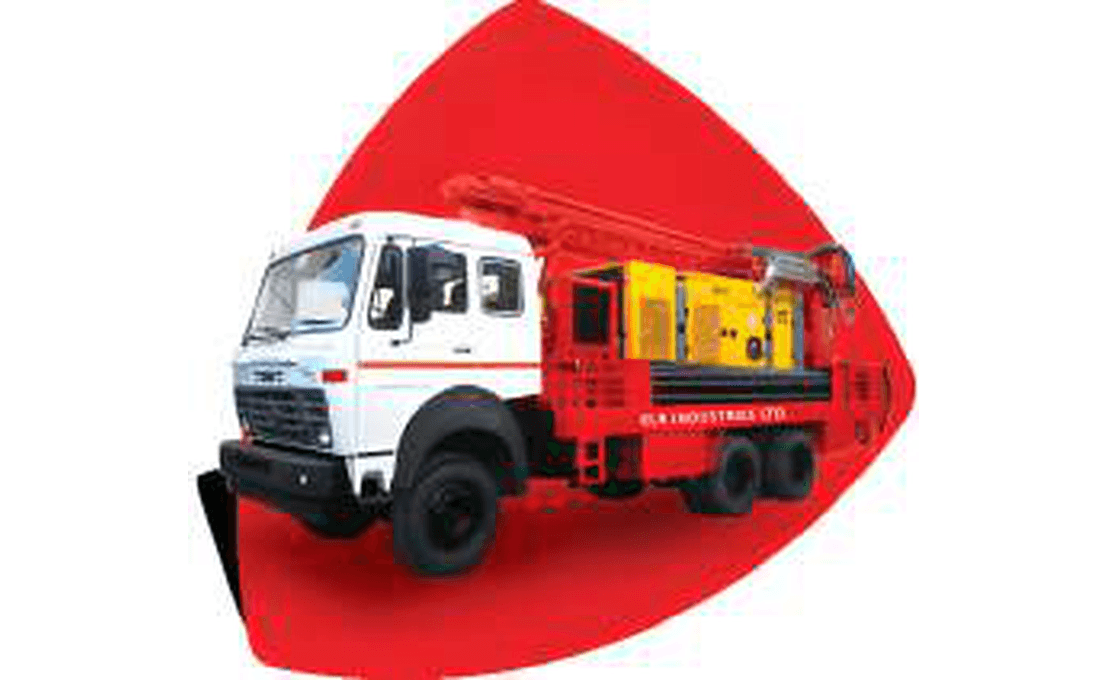

DTH-2500

The largest rig in the domestic DTH line, built for the deepest, highest-yield water well programmes with the torque and compressor capacity to match.
