A Practical Guide to Mining Drilling Rigs: Types, Working Principles and Applications

Mining begins with drilling. Before ore is excavated and material is hauled, drilling determines how rock will fragment and how efficiently the rest of the operation will run. That is why mining drilling rigs are considered core components of modern mining machinery in both surface and underground operations.

In most modern mines, drilling prepares holes for blasting, development, or exploration sampling. Across equipment manufacturers and mining technology providers, drilling and blasting are positioned as critical to production planning and fragmentation control.

As mineral demand grows globally, mines increasingly rely on robust heavy mining equipment and performance-driven mining drilling equipment to maintain output and operational safety.

What Is a Mining Drilling Rig?

A mining drill machine is a heavy-duty system designed to drill holes in rock formations for blasting, sampling, or development.

Industry sources classify mining drills into several categories based on their use case: production drilling, development drilling, and exploration drilling.

Unlike loaders or trucks that handle broken material, such drill rigs for mining operate earlier in the cycle. Their function is precision penetration, creating holes that define blast patterns or extract geological cores.

How Mining Drilling Rigs Work

Although designs vary, most mining drilling equipment operates using rotary, percussive, or combined drilling methods.

• Rotary drilling uses rotational force and downward pressure.
• Percussive drilling uses impact energy to fracture rock.
• DTH drilling rigs mining applications position the hammer near the bit for efficient impact transfer.

These methods form the operational backbone of drilling systems used in surface and underground mining environments.

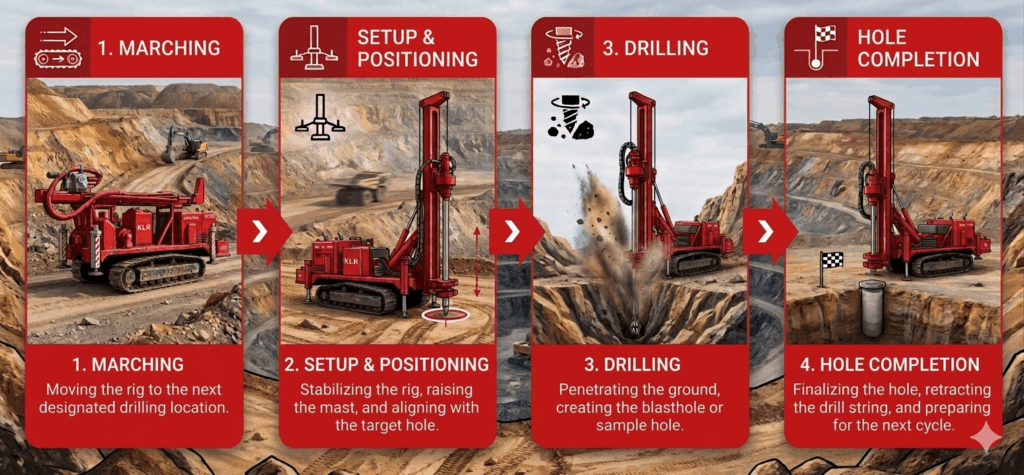

Working Cycle of a Mining Drilling Rig

Major Types of Drilling Machine in Mining

When evaluating the types of drilling machine in mining, classification is typically based on the operating environment.

Classification by Environment

Surface Mining Drill Rigs and Blasthole Drills

Open-pit mining heavily depends on blasthole drills. A blast hole drilling rig is used to create large-diameter holes in rock benches that are later filled with explosives for controlled fragmentation.

It is widely used in open-cast mining due to its suitability for large-scale rock breakage.

Underground Mining Drill Rigs

Underground drill rigs are engineered for confined environments. They are commonly used for face drilling, longhole drilling, and roof support operations.

These applications demand precision and compact design which make mining drill rig specifications such as boom reach, drill angle range, and machine width critical to safe operation.

Blasthole Drills vs Core Drilling Machines

A core drilling machine for mining is used during exploration to extract cylindrical rock samples for geological analysis.

Blasthole rigs, by contrast, are designed for production fragmentation.

DTH Drilling Rigs in Mining Operations

In hard rock formations, DTH drilling rigs mining systems are widely used. The hammer operates directly behind the drill bit, improving impact efficiency and hole straightness.

Many modern construction and mining drill rigs incorporate DTH technology to deliver high-penetration performance across varied geological conditions.

Mining Drill Rig Capacity and Specifications

Selecting the right system depends on aligning operational needs with mining drill rig capacity and detailed mining drill rig specifications.

These performance indicators guide procurement decisions across mining projects.

Applications Across Mining Stages

Mining drills are used across exploration, development, production drilling, and secondary blasting stages.

Because drilling directly affects fragmentation and structural development, mining drilling rigs remain central to overall mine planning and productivity.

The Role of Manufacturers Like KLR Universal

Manufacturers such as KLR Universal provide a range of surface and underground drilling solutions, along with DTH tools and drilling accessories.

By offering specialized mining drilling equipment, they support diverse geological and operational requirements in mining environments.

Conclusion

Choosing the right mining drilling rigs depends on mining method, geology, depth requirements, and production goals.

While surface operations rely heavily on surface drill rigs and blast hole drilling rig systems, underground environments demand compact, precise underground drill rigs. Hard rock formations often benefit from DTH drilling rigs mining configurations.

Matching the right mining drill machine to operational needs ensures safer and more efficient drilling outcomes.
