KPR — Large Diameter Water Well Rig

Drill Diameter 24″ to 47.2″

Depth15 m

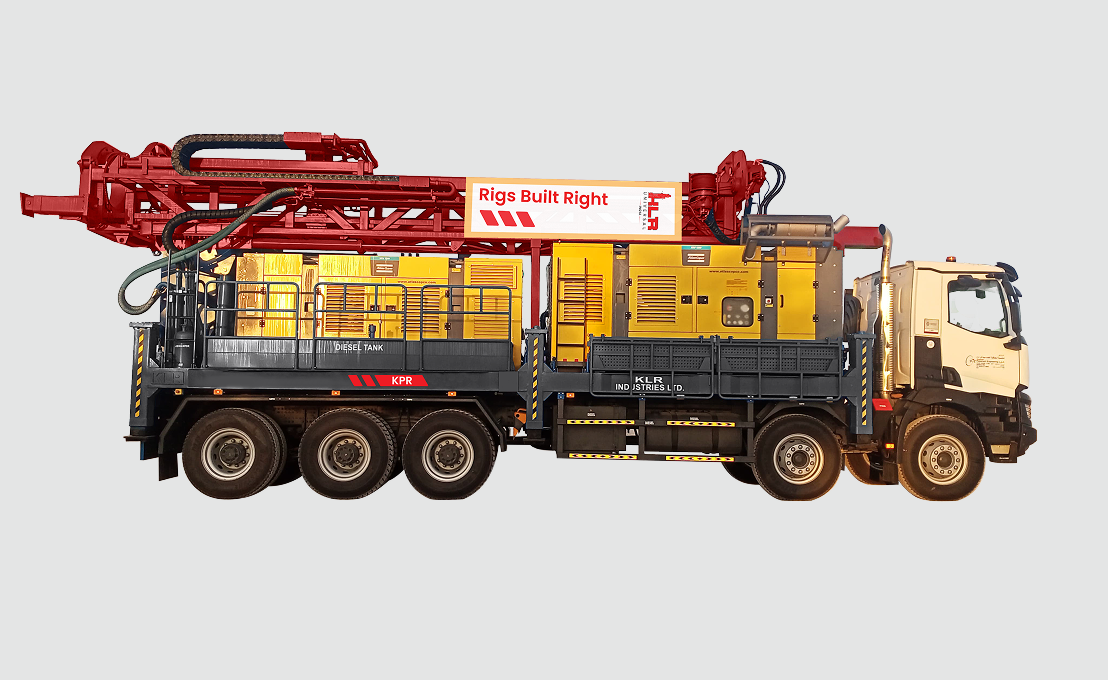

KPR — Large Diameter Water Well Rig

Heavy-duty water well rig for deep, large-diameter bores

The KPR is a robust, truck-mounted drilling rig designed for large-diameter water wells. Equipped with a 260 HP deck engine, heavy-duty mast, and high-torque rotary head (2,500 kg·m), it delivers exceptional performance in soft, hard, unconsolidated, and alluvial formations. Ideal for irrigation, municipal, and industrial borewell projects.

Product Specifications

Download KPR specification sheet (PDF)

Why KLR universal

32 years of expertise
Industry leader
Trusted in 60 countries
Excellent after-sales support

Contact & Support

Parameter	Value
Hole diameter options	24″ (610 mm) — up to 66 ft (20 m) depth 31.5″ (800 mm) — up to 33 ft (10 m) depth 39.3″ (1000 mm) — up to 23 ft (7 m) depth 47.2″ (1200 mm) — up to 16 ft (7 m) (optional)
Carrier	10×4 Truck / As per customer request
Standard mounting	Skid mount
Prime mover	Deck engine (260 HP)
Engine make	Cummins / Any reputed make
Formations	Soft / Hard / Unconsolidated / Alluvial
Mast	Max pull-up force: 32,100 kgf Max pull-down force: 16,900 kgf Pull-up speed: 16 m/min
Rotary head	Max speed: 30 rpmMax torque: 2,500 kg·m
Air compressor (compatible options)	Atlas Copco / ELGI / As per customer request — 2 × 1100 cfm @ 300 psi or 1200 cfm @ 300 psi (optional)
