Name: PD 1200
Brand: KLR Universal

Question 1

What are the key specifications of the PD 1200?

Accepted Answer

Hole Diameter: Up to 24″; Depth: 50 m. Full specifications are listed in the table below.

Question 2

What category of drilling rig is the PD 1200?

Accepted Answer

The PD 1200 is part of KLR Universal's Construction Drill Rigs range.

Question 3

Can the PD 1200 be customized for specific project requirements?

Accepted Answer

Yes. KLR Universal builds custom drilling equipment to meet application-specific requirements -- contact our team to discuss configuration for your project.

Question 4

Does KLR Universal provide after-sales support for the PD 1200?

Accepted Answer

Yes. KLR Universal backs every rig with dedicated after-sales support, drawing on 40+ years of manufacturing experience and a presence in 60+ countries.

Parameter	Value
Hole diameter (rotary)	300–1200 mm
Hole diameter (auger)	Up to 24″ (610 mm)
Max depth	50 m
Formations	Soft / hard / unconsolidated / alluvial
Rotary head (standard)	Max speed 0–200 rpm, max torque 250 kg·m
Rotary head (optional)	Max speed 0–160 rpm, max torque 320 kg·m
Mast	Max pull-up force 4,500 kgf, max pull-down force 2,400 kgf, feed/pull-up speed 35 m/min
Rod handling capacity	Rotary drilling 3 m, auger drilling 6 m
Rod changer	On-board
Mud pump	On-board 1000 LPM pump (up to 16″ drilling); external mud pump for over 16″
Carrier	New Holland / as per customer request
Prime mover & power	Tractor engine, 75 HP

PD 1200

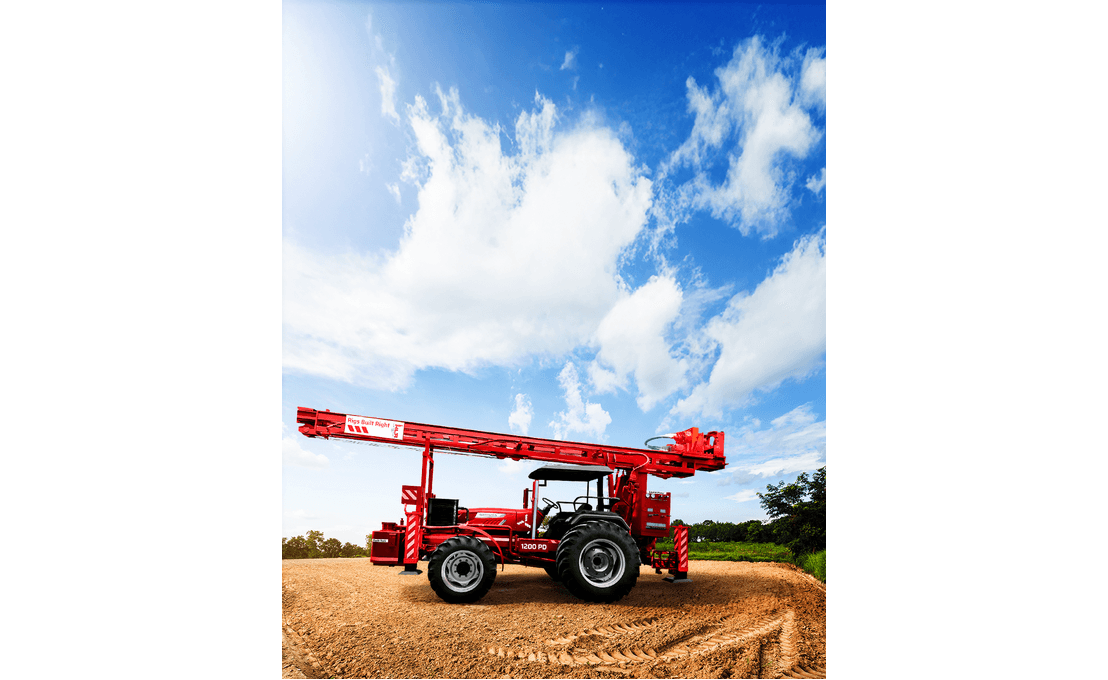

Tractor-mounted rotary/auger rig combining a robust mast with high-torque rotary drive and on-board mud handling for fast, clean boreholes in foundation, utility, and civil works.
